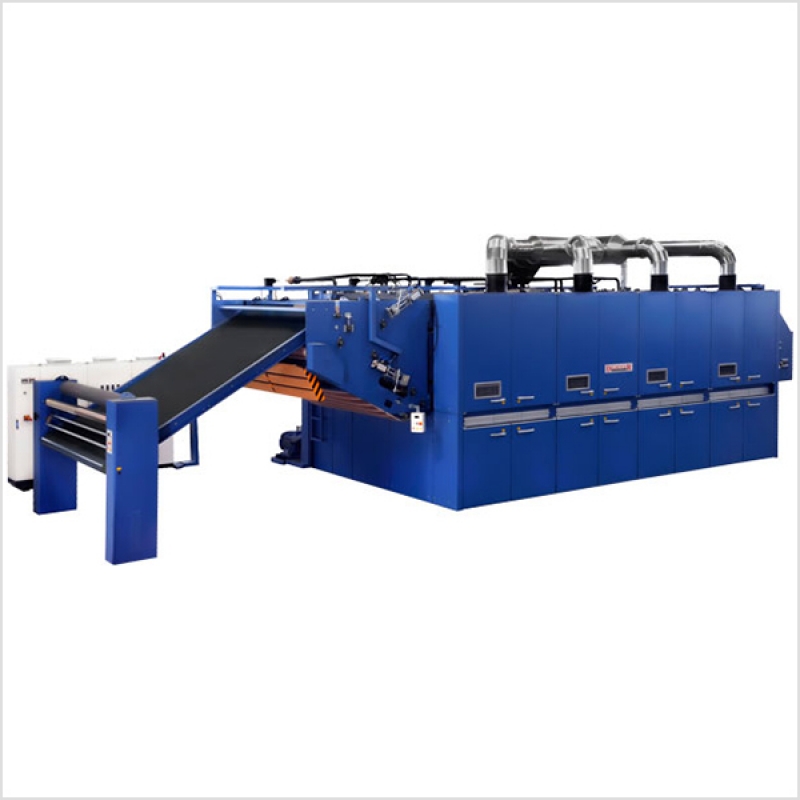

JUMBO AIR RELAX DRYER MACHINE

The main idea of the air-cushion dryer is to provide high quality drying without any color difference with excellent shrinkage values without stretching in tubular or open-width fabrics. The fabric in the drying cabinet is dried under multi-feed air cushion conditions. This provides excellent dimensional stability, soft and pleasant touch and additional value increase in the final product. The dryer has a hanging jet nozzle system. Each cabin has an air circulation turbine and is designed to operate at maximum efficiency. outlet part, special carrier to eliminate static charges of delicate fabrics.

TECHNICIAL SPECIFICATIONS working width: 2200-3200 mm Cabin length : 2000 mm Water blast capacity: 125-200 Kg water/hour/cabin Machine speed: 40m/min Fabric feeding speed: 0-50% stepless adjustable Heating system: Steam, Natural gas, LPG, Hot oil Thermal Power - 75,000 KCal / hour / cabin Natural Gas Consumption - 9.10 Nm3 / h / cabin ​Gas Pressure - 30 to 100 mbar
