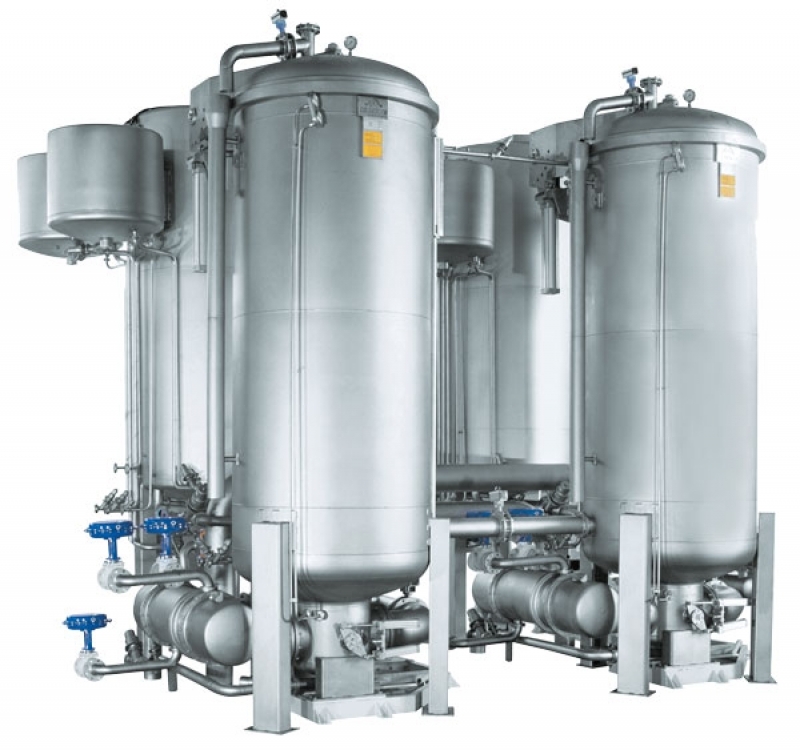

TECHNICAL ADVANTAGES Perfect dyeing opportunity on bobbins with a maximum weight of 2 kg without making any difference between inside and outside. Bidirectional flow from inside/outside or outside/inside by means of a damper without changing the motor direction thanks to the turbo pump. Quick and effective heating thanks to the effective heat exchanger With airbag, min. 50%, max. Possibility of dyeing at 100% capacity Possibility of smooth painting at any pressure via differential pressure transmitter Repeatability capability in dyeing with automation system Shortened dyeing time thanks to full reserve container liquor ratio ranging from 1:5 to 1:8 Single or double coat hanger Heat exchanger at the bottom of the body or in the circulation line quick open-close locking system Centrifugal pump sealed with mechanical seal HT Coil Dyeing Machine can be manufactured in different capacities starting from 25 Kg up to 1000 Kg. Machine body, machine sub-chassis, pump circulation line, flange connections etc. All parts in contact with the liquid bath, such as liquid bath, are manufactured from AISI 316/316L quality stainless steel with high resistance to corrosion.
